Diversion Tube Stacking System

In Stock

|

SKU: 936DTSTACK

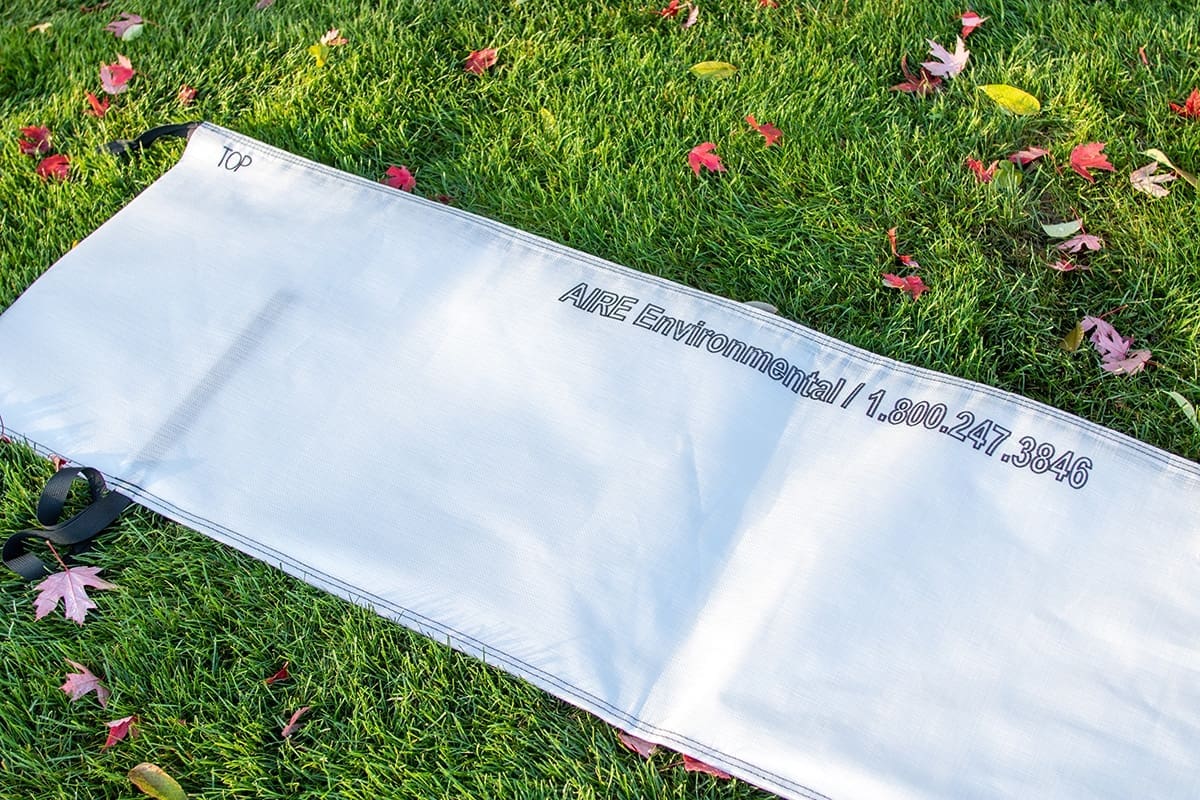

Diversion Tube Stacking Sleeves are a system that allows for stacking of AIRE Environmental 12” Diversion Tubes. Utilizing Stacking Sleeves achieves 18” flood barrier height, improving floodwater protection and system stability.

$105.00$1,996.90

Specifications

  • Length
    100'
  • Barrier
    18"
  • Material
    22oz PVC
  • Number of Sleeves
    11
  • Includes
    Diversion Tube Fill Adapter
  • Includes
    Nylon Guyline Support Loops (ropes & stakes not included)
  • Includes
    3 - 12” x 100’ Diversion Tubes
  • Length
    75'
  • Barrier Height
    18"
  • Material
    22oz. PVC
  • Number of Sleeves
    8
  • Includes
    Diversion Tube Fill Adapter
  • Includes
    Nylon Guyline Support Loops (ropes and stakes not included)
  • Includes
    3 - 12” x 75’ Diversion Tubes
  • Length
    50'
  • Barrier Height
    18"
  • Material
    22oz PVC
  • Number of Sleeves
    5
  • Includes
    Diversion Tube Fill Adapter
  • Includes
    Nylon Guyline Support Loops (ropes and stakes not included)
  • Includes
    3 - 12” x 50’ Diversion Tubes
  • Length
    3'
  • Weight
    3 lbs.
  • Material
    Polyethylene

Files

Diversion Tube Stacking System

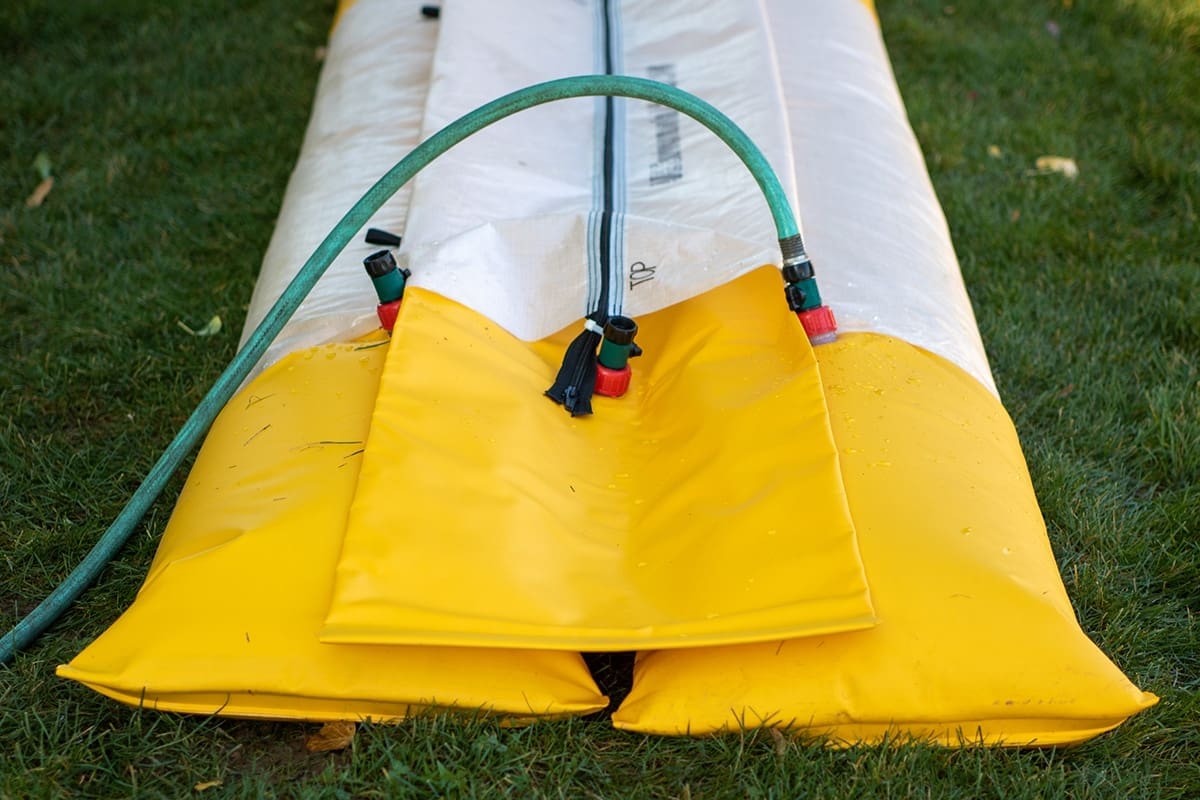

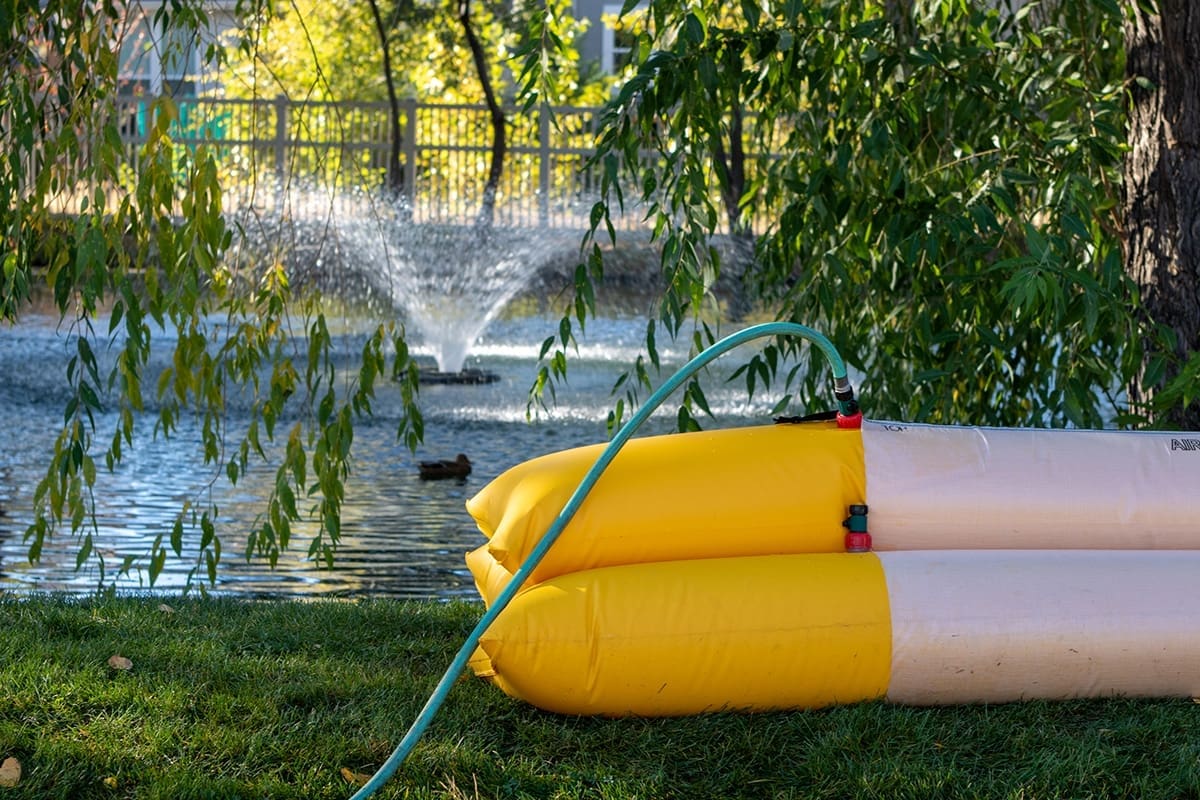

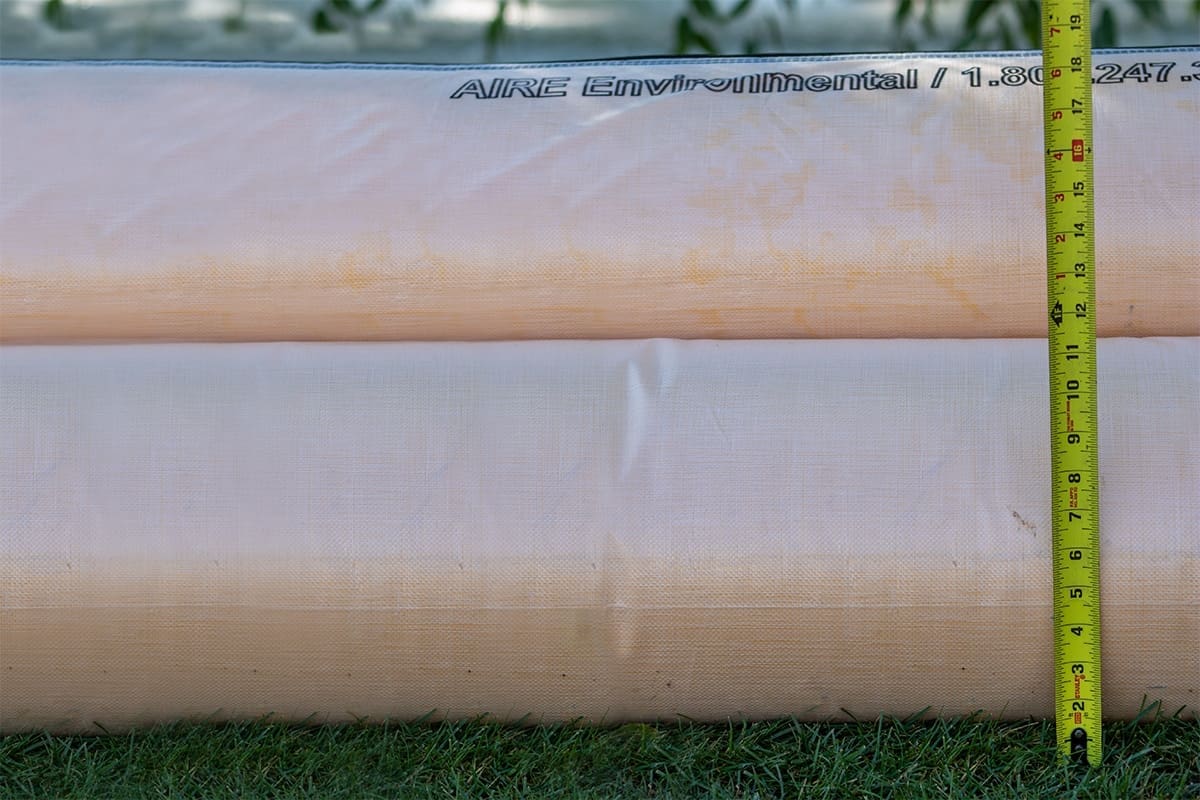

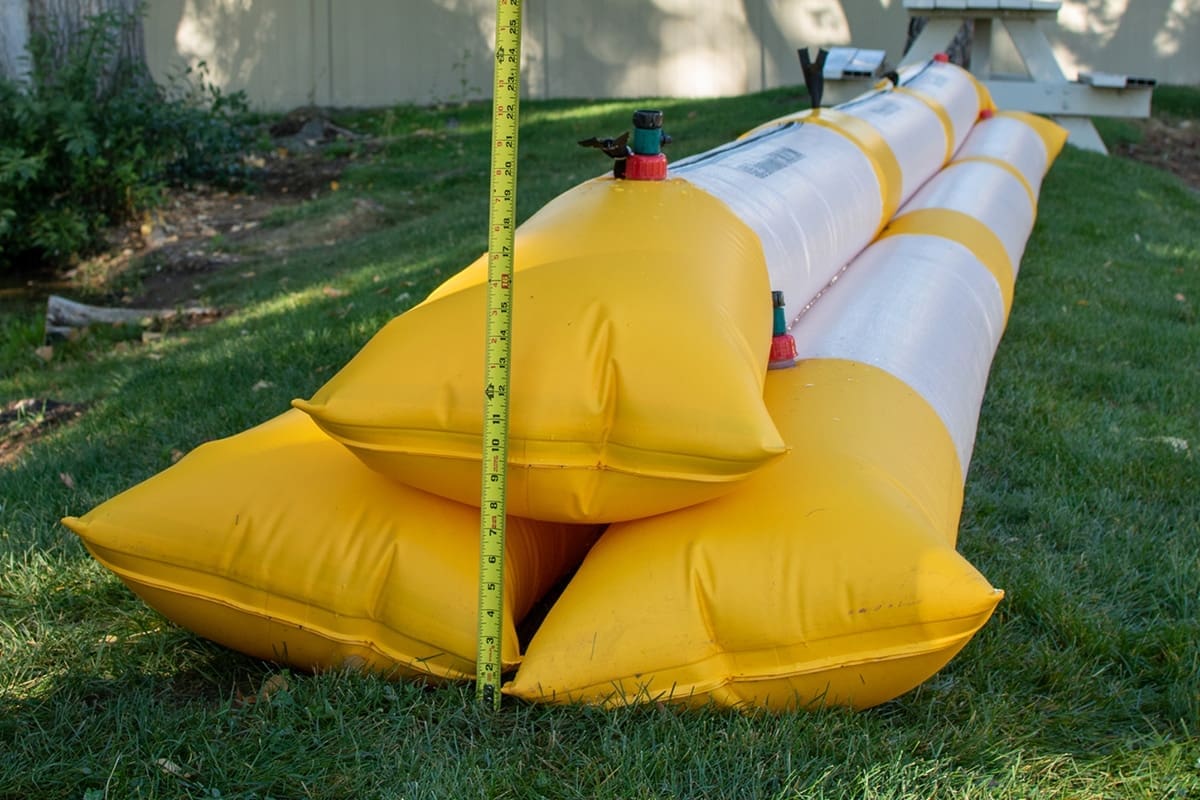

At AIRE Environmental, we work to bring you the most efficient solutions for your home or business needs. When our team creates a product, we continue innovating to make it even more sustainable and effective. That’s why we developed the AIRE Environmental Diversion Tube Stacking System (DTSS). The Diversion Tube Stacking System creates an 18” tall barrier, replacing the need for approximately 90 sandbags for every 10 feet of barrier length. Utilizing a DTSS not only increases system loft height, but also enhances barrier stability, improves seepage reduction, and helps prevent the shifting of Diversion Tubes facing currents and wave action. The DTSS is a triple tube system that functions by utilizing downward load and compression from a single upper tube into the cradle of lower tubes retained within the sleeves.

Selecting the proper number of stacking sleeves is dependent on the length of tube you will be running. Each sleeve is approx. 6ft in length and should be positioned with a maximum spacing of 3ft between sleeves. (Some exceptions may apply) See the table below to help with your planning process.

   Diversion Tube Length

    Required Number of Sleeves

12″x10′

1 Sleeve

12″x25′

3 Sleeves

12″x50′

5 Sleeves

12″x75′

8 Sleeves

12″x100′

11 Sleeves
